sun SOLAR and WIND CHARGE CONTROLLERS Wind1
DIVERT LOAD CONTROLLERS and DIVERT LOADS
The main function of a charge controller is to protect your batteries from over charging,
so a good charge controller is important for protecting battery life!

(Scroll down towards the end of this page
for our Diversion Controllers and Diversion Load items)

Here are our choices for best value and performance


10Amp Solar Panel Charge Controller 12/24V

10AChargeController copy CCsideview copy
Terrific little charger!

10Amp Solar Panel Charge Controller 12/24V
$39 + FREE SHIPPING!
(48 states free, call for AK, HI and PR shipping cost)
Screen shot 2014-03-02 at 4.35.26 PM

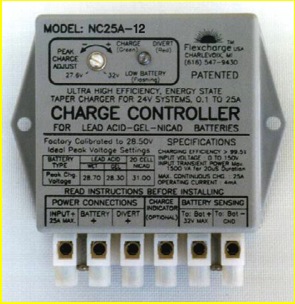

Flexcharge NC25A 12V and 24V Solar or Wind Charge Controllers

nc25a12vphoto nc25a_photo
Very high charging efficiency (99.5%+),
dependable and simple to operate!

  • FEATURES:
  • 5 YEAR WARRANTY.
  • COMPLETELY SEALED ELECTRONICS FOR MARINE OR OUTDOOR MOUNTING.
  • LOW BATTERY VOLTAGE INDICATOR. (FLASHING RED LIGHT).
  • CHARGING EFFICIENCY BETTER THAN 99.50% FROM 0.5A TO 30A OF CHARGING CURRENT.
  • OPERATES EFFICIENTLY (98%) WITH AS LITTLE AS 0.1A OF SOLAR PANEL CHARGING CURRENT.
  • EFFICIENTLY CHARGES BATTERIES FROM 0 VOLTS WITH FULL POWER.
  • 25 AMP CHARGE DIVERT CIRCUIT. STABLE DIVERT CIRCUITRY PREVENTS ERRATIC RELAY SWITCHING IF CHARGE SOURCE VOLTAGE DROPS.
  • DIVERTS ONLY WHEN VOLTAGE AND CURRENT ARE AT USABLE LEVELS. PERFECT FOR MOTOR TYPE DIVERT LOADS (FANS, PUMPS, etc...)
  • CONSUMES LESS THAN 5mA (0.005A) WHILE CHARGING AND AT NIGHT, 2mA IF YOU DO NOT USE THE CHARGE INDICATOR.
  • CHARGES BATTERIES AT FULL POWER, BELOW THE PLATE SATURATION POINT, THIS CHARGES BATTERIES FASTER, AND REDUCES ELECTROLYTE DEPLETION BY UP TO 90% OVER CONVENTIONAL CONSTANT VOLTAGE, PWM, & HIGH FREQUENCY CHARGE REGULATORS.
  • BATTERIES START CHARGING AT 0.005A OF CHARGE CURRENT.
  • CONTROLLER CAN WITHSTAND OPEN CIRCUIT INPUT SPIKES OF 1500V/A, & 140V CONTINUOUS WITHOUT DAMAGE.
  • REVERSE POLARITY AND TRANSIENT VOLTAGE PROTECTION ON THE BATTERY SENSE WIRES.
  • NO POWER WASTING SAMPLE PERIODS.
  • REMOTE BATTERY VOLTAGE SENSING SO THE CONTROLLER CAN BE MOUNTED ANYWHERE BETWEEN THE CHARGING SOURCE AND THE BATTERIES.
  • EASY TO INSTALL USING THE LABELED CORROSION RESISTANT NICKEL / BRASS / STAINLESS STEEL CONNECTOR.
  • U/L 94V-O RATED ENCLOSURE AND UL LISTED OR RECOGNIZED COMPONENTS.

Flexcharge NC25A 12V
$120 + shipping

Screen shot 2014-03-02 at 4.35.26 PM

Flexcharge NC25A 24V
$125 + shipping

Screen shot 2014-03-02 at 4.35.26 PM

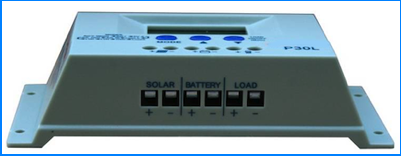

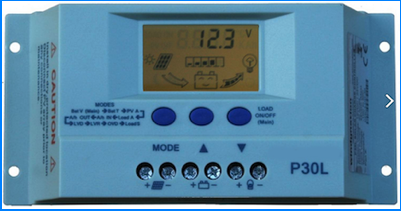

30Amp PWM Solar Panel Charge Controller 12V/24V with Digital Display,

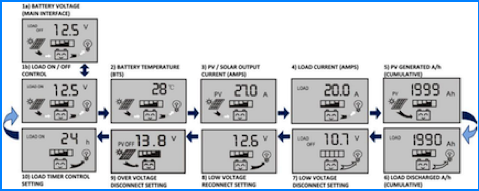

a menu of display options and user adjustable settings (great little charger!)
The perfect solar charge controller for an RV, boat, small cabin or any other off-grid installation
where user configurability and system information is important.
Battery temperature sensor (BTS) is included.


Controller1 Controller2
ScreenMenu

30Amp 12V/24V Solar Panel Charge Controller with Digital Display
$69 + FREE SHIPPING!
(48 states free, call for AK, HI and PR shipping cost)
Screen shot 2014-03-02 at 4.35.26 PM

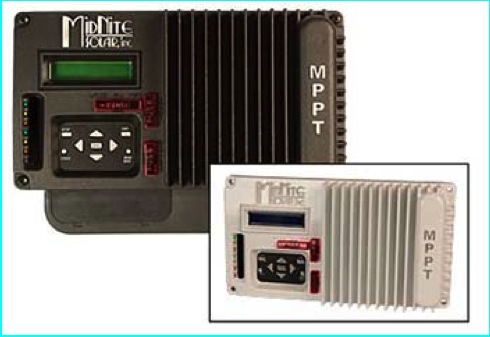

Midnite Solar KID 30Amp MPPT 12/24/48V Solar Charge Controller
Available in White or Black in Standard or Marine models
Compact size 9.5”x 3.4”x 6.6”

mnkid

FEATURES:

  • MPPT Tracking
  • True paralleling - Inputs and Outputs for two KIDs
  • Up to 150V input
  • MidNite’s exclusive HyperVOC extends the input voltage beyond 150 VOC for cold climates
  • 12V, 24V, 36V, 48V battery output
  • Lighting Controller: dusk-dawn, hourly, day, night settings
  • Up to 30 amps battery output with low input voltage based off of PV configuration
  • No fan
  • Reverse polarity protected
  • Battery Temp Sensor standard with marine version only.
  • Front panel exchangeable fuses for battery, input and load/clipper. Marine version supplied with circuit breaker load circuit
  • 3 LED bar graph for battery status at a glance
  • Keypad for access to extensive menu items and set points
  • Includes wall mount adapter (Boat mount bracket included on marine versions)
  • Sealed for harsh environments
  • Built in Arlington, WA USA

30Amp KID White or Black Standard Model
$329 + shipping

Screen shot 2014-03-02 at 4.35.26 PM

30Amp KID White or Black Marine Model
Marine models come standard with a mounting bracket, 4’ of flexible conduit and
extra protection against moisture, dust, chemicals and extreme temperatures

$379 + shipping
Screen shot 2014-03-02 at 4.35.26 PM

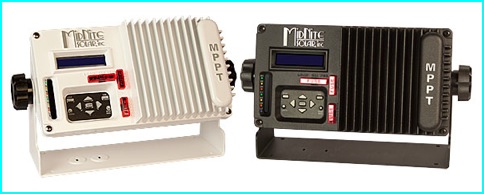

Mounting brackets are standard on Marine KID Controller
kidMarine_wht_web
Add a second KID when you add more solar panels
Can be used as a lighting controller also!
Keypad for extensive menu items and set points
Made in the USA!

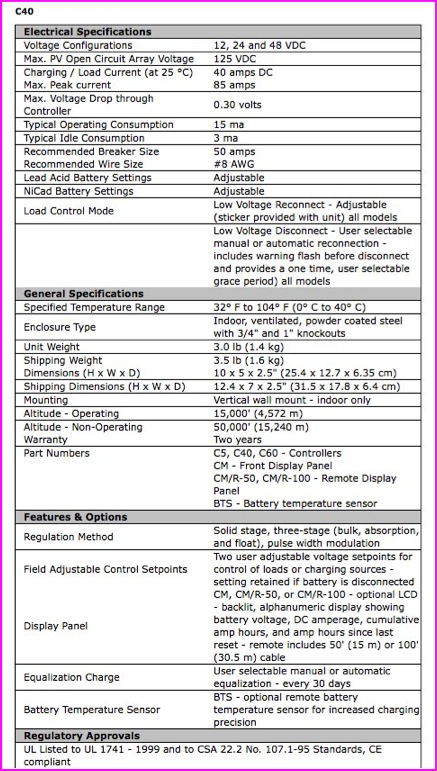

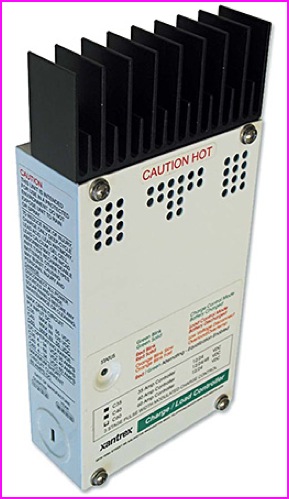

Xantrex 40Amp 12/24/48V Solar Charge / Divert Controller

C-60(new) C40specs
A controller for virtually any DC charging source
3-Stage battery charging
UL Listed

FEATURES:

  • Silent, pulse width modulated (PWM), high efficiency operation
  • Three-stage battery charging (bulk, absorption, and float)
  • Automatic overload protection in both active and passive modes
  • PV array short circuit and reverse polarity protection.
  • Durable construction
  • Backed by a two year warranty
  • Microprocessor controlled

Xantrex 40Amp 12/24/48V Solar Charge / Divert Controller
$159.00
+ FREE SHIPPING
(48 states free, call for AK, HI and PR shipping cost)
Screen shot 2014-03-02 at 4.35.26 PM

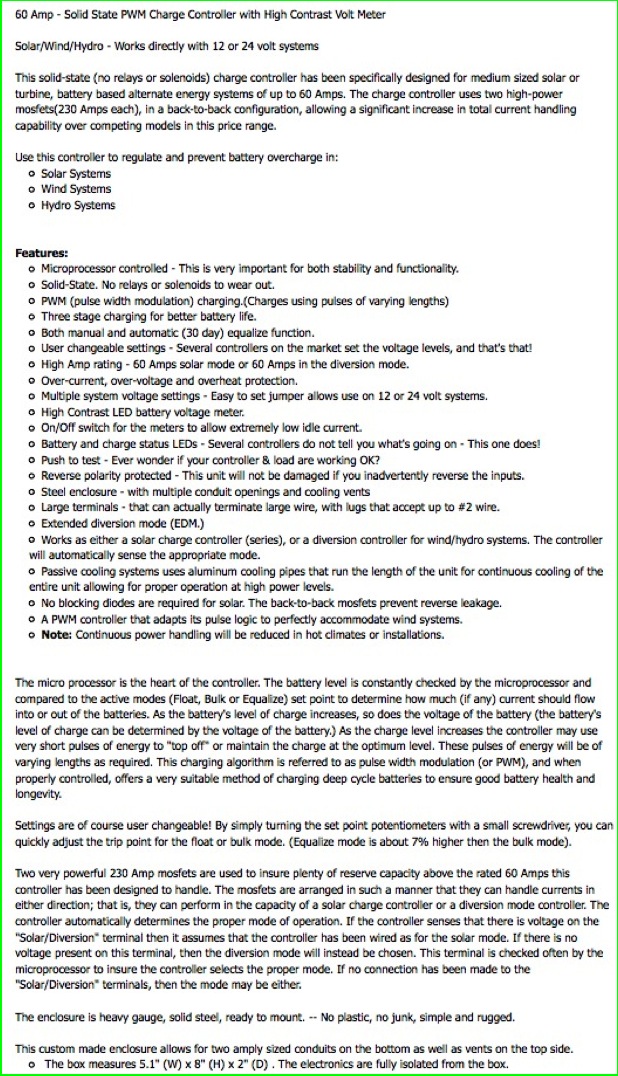

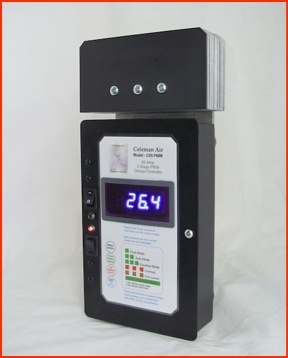

C-Air 60Amp Solid State PWM
Solar-Wind-Hydro Charge / Divert Controller
12/24V with High Contrast LED Volt Meter


C60-PWM


C60A-PWMCharge-DivertControllerSpecs
Heavy gauge steel enclosure with conduits at bottom
Top side vents
Fully isolated electronics

Made in the USA!

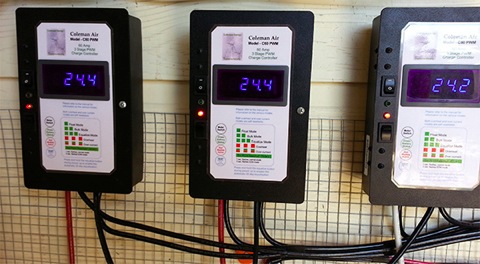

Customer’s installation of 3- 60A’s as Divert Controllersjoekinstall1

C-Air 60Amp Solid State PWM
$169 + shipping
Screen shot 2014-03-02 at 4.35.26 PM

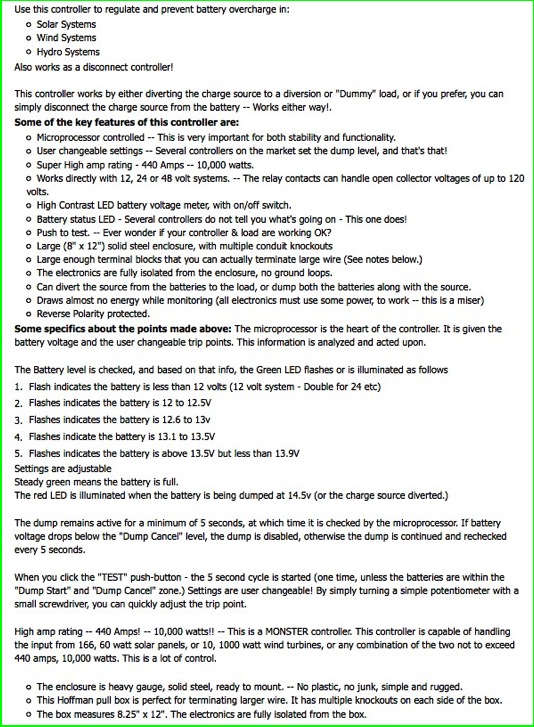

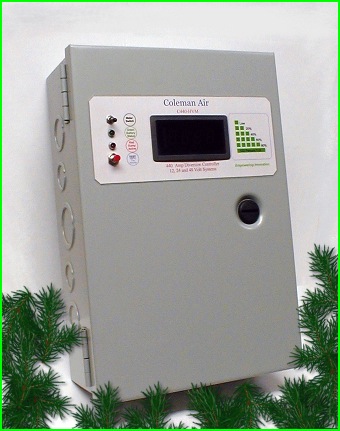

C-Air 440Amp / 10,000Watt
Solar-Wind-Hydro Charge / Divert Controller
12/24/48V with High Contrast LED Volt Meter

FEATURES:

  • Microprocessor controlled -- This is very important for both stability and functionality
  • User changeable settings -- Several controllers on the market set the dump level, and that's that!
  • Super High amp rating - 440 Amps -- 10,000 watts (125 Amps for solar)
  • Works directly with 12, 24 or 48 volt systems -- The relay contacts can handle open collector voltages of up to 120 volts
  • High Contrast LED battery voltage meter with on/off switch
  • Battery status LED
  • Push to test. -- Ever wonder if your controller & load are working OK?
  • Large (8" x 12") solid steel enclosure, with multiple conduit knockouts
  • Large enough terminal blocks that you can actually terminate large wire
  • The electronics are fully isolated from the enclosure, no ground loops
  • Can divert the source from the batteries to the load, or dump both the batteries along with the source
  • Draws almost no energy while monitoring (all electronics must use some power, to work -- this is a miser)
  • Reverse Polarity protected

440HVMpic 440A-HVMSpecs
All the features you need a divert controller to do!
User friendly & adjustable, large steel enclosure box, test button and
battery status indications

C-Air 440Amp / 10,000Watt Solar-Wind-Hydro Charge / Divert Controller
12/24/48V with High Contrast LED Volt Meter

$269 + shipping
Screen shot 2014-03-02 at 4.35.26 PM

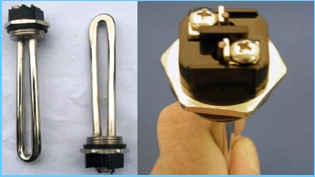

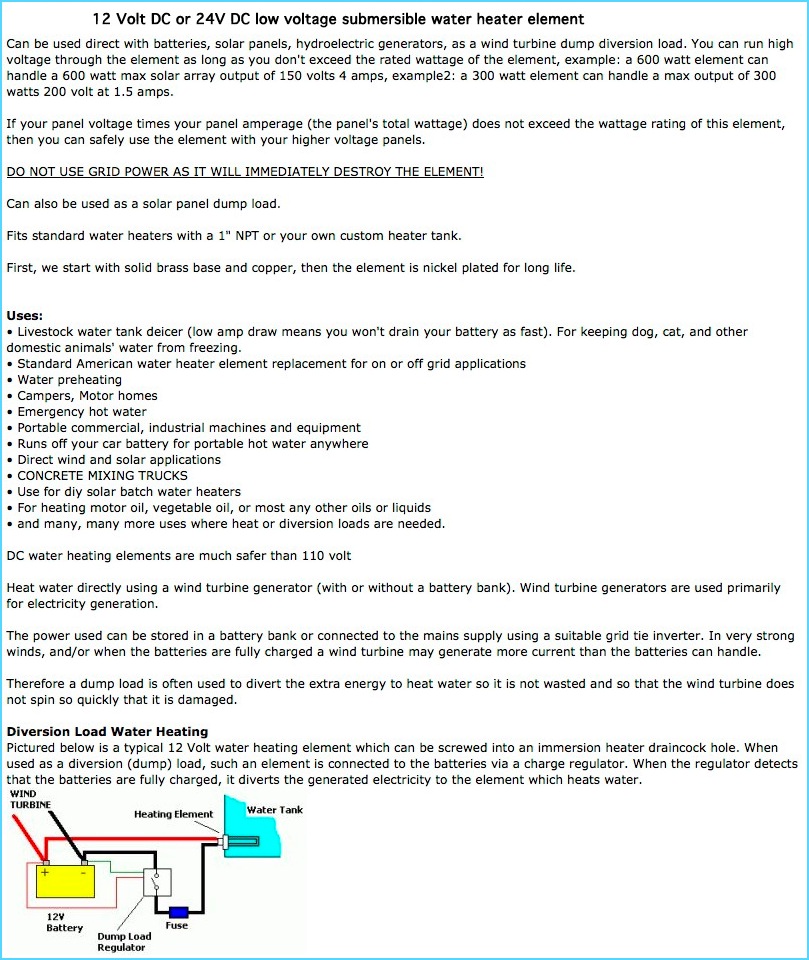

C-Air 6” 12V or 24V 600W DC Submersible Water Heater Element Divert Load
Used as divert load with solar panels, micro hydro turbines and wind turbines

DCWaterHeater HotWaterHeatingElement-1
6_12or24VDCWaterHeatElement

C-Air 6” 12V 600W DC Submersible Water Heater Element
$69 + shipping
Screen shot 2014-03-02 at 4.35.26 PM


C-Air 6” 24V 600W DC Submersible Water Heater Element
$69 + shipping
Screen shot 2014-03-02 at 4.35.26 PM





9.25” 12-24V or 24-48V DC Submersible Water Heater Element Divert Load
Used as divert load with micro hydro turbines and wind turbines

Lghwhelement
Fits most standard electric water heaters with screw-in elements


9.25” 1450W 24-48V or 900W 12-24V DC Submersible Water Heater Element
$175 + shipping

Screen shot 2014-03-02 at 4.35.26 PM

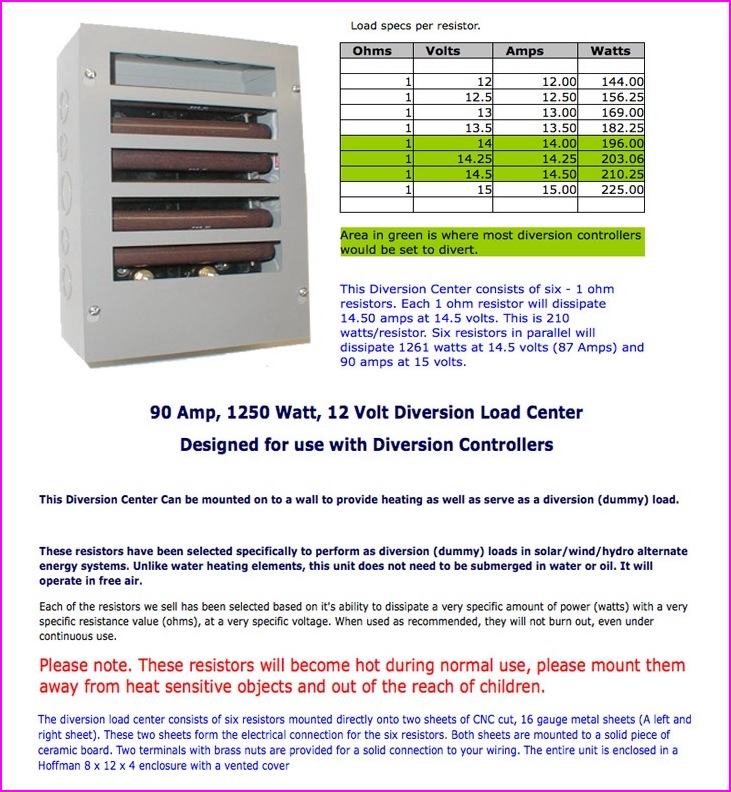

C-Air 90A/ 12V 1250W Divert Load Resistor Heater
Solar-Wind-Hydro Divert Load
Designed for use with Diversion Controllers

90A1250W-12VResistor-HeaterDiversionLoad
Can be mounted on wall to provide heating as well as serve as divert load

C-Air 90A/ 12V 1250W Divert Load Resistor Heater
$169 + shipping
Screen shot 2014-03-02 at 4.35.26 PM

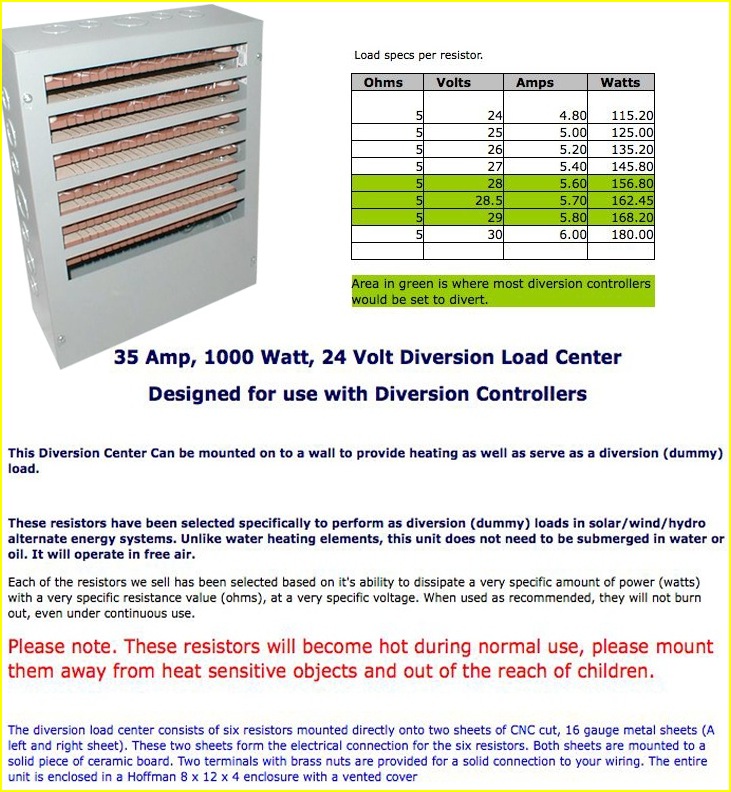

C-Air 35A/ 24V 1000W Divert Load Resistor Heater
Solar-Wind-Hydro Divert Load
Designed for use with Diversion Controllers

24vdivertloadpic-specs

C-Air 35A/ 24V 1000W Divert Load Resistor Heater
$169 + shipping
Screen shot 2014-03-02 at 4.35.26 PM

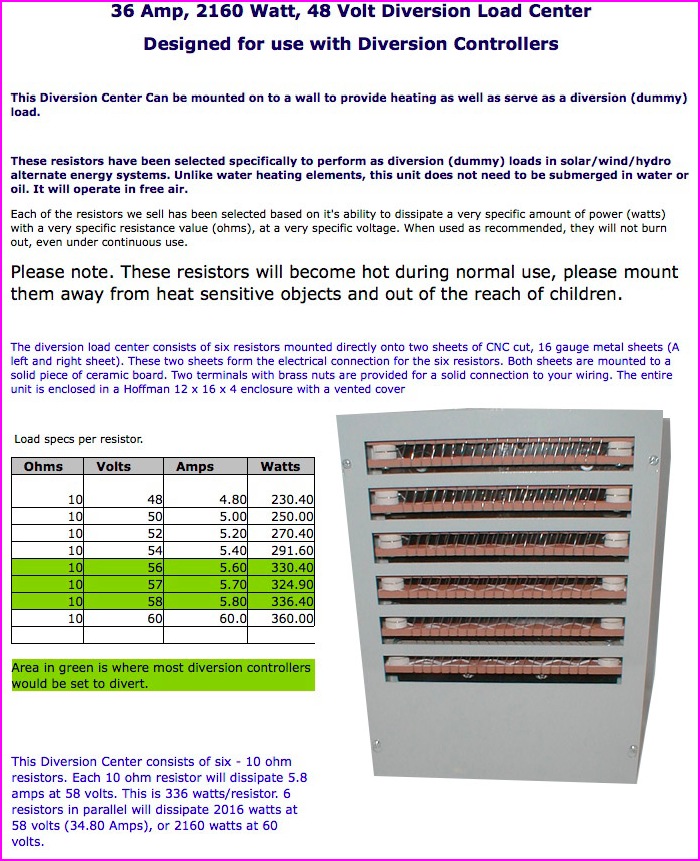

C-Air 36A/ 48V 2160W Divert Load Resistor Heater
Solar-Wind-Hydro Divert Load
Designed for use with Diversion Controllers

36A-2160W-48V ResistorHeater

C-Air 36A/ 48V 2160W Divert Load Resistor Heater
$229 + shipping
Screen shot 2014-03-02 at 4.35.26 PM


Screen shot 2014-07-23 at 12.03.05 PM
